Modul 1 Percobaan 5

Dipswitch dan 7-Segment

1. Prosedur [Kembali]

• Rangkai semua komponen
• Buat program di aplikasi arduino IDE
• Setelah selesai masukkan program ke arduino
• Jalankan program pada simulasi dan cobakan dengan modul
• Lihat hasil pada 7-Segment

2. Hardware dan Diagram Blok [Kembali]

• Hardware

• Diagram Blok

3. Rangkaian Simulasi dan Prinsip Kerja  [Kembali]

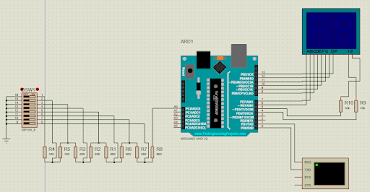

• Rangkaian Simulasi

• Prinsip Kerja

Pada percobaan 5 kondisi 1 yang dimana menggunakan dipswitch sebagai input dan seven segment 2 digit sebagai output, pada dipswitch menggunakan rangkaian pull down, yang mana rangkaian pull down akan aktif apabila saklarnya terhubung. Pada saat dipswitch terhubung maka dipswtich akan berlogika high kemudian data akan di transfer ke mikrokontroler arduino uno, kemudian dari mikrokontroler arduino uno menuju seven segment 2 digit, maka seven segment akan menampilkan angka sesuai dengan kodingan yang dibuat.

4. Flowchart dan Listing Program [Kembali]

• Flowchart

• Listing Program

//M1P5 #define a 6 #define b 7 #define c 8 #define d 9 #define e 10 #define f 11 #define g 12 #define dp 13 #define D1 4 #define D2 5 #define Dsw A0 /*39 32 26 27 19 */ int segments[] = {a,b,c,d,e,f,g}; byte digitPatterns[10][7] = { {0, 0, 0, 0, 0, 0, 1}, // 0 {1, 0, 0, 1, 1, 1, 1}, // 1 {0, 0, 1, 0, 0, 1, 0}, // 2 {0, 0, 0, 0, 1, 1, 0}, // 3 {1, 0, 0, 1, 1, 0, 0}, // 4 {0, 1, 0, 0, 1, 0, 0}, // 5 {0, 1, 0, 0, 0, 0, 0}, // 6 {0, 0, 0, 1, 1, 1, 1}, // 7 {0, 0, 0, 0, 0, 0, 0}, // 8 {0, 0, 0, 0, 1, 0, 0} // 9 }; void setup() { // put your setup code here, to run once: for (int i = 0; i < 7; i++) { pinMode(segments[i], OUTPUT); } pinMode(dp,OUTPUT); pinMode(D1,OUTPUT); pinMode(D2,OUTPUT); pinMode(Dsw,INPUT_PULLUP); Serial.begin(9600); } void number (int display) { if (display >= 0 && display <= 9) { for (int i = 0; i < 7; i++) { digitalWrite(segments[i], digitPatterns[display ][i]); } } } void loop() { int sw = analogRead(Dsw); Serial.print("ADC Value = "); Serial.println(sw); delay(100); if(sw == 1023){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(0); delay(50); } else if(sw > 35 && sw <38){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(0); delay(1000); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(1); delay(1000); }else if(sw > 38 && sw <41){ digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(0); delay(1000); number(1); delay(1000); number(2); delay(1000); number(3); delay(1000); number(4); delay(1000); number(5); delay(1000); number(6); delay(1000); number(7); delay(1000); number(8); delay(1000); number(9); delay(1000); }else if(sw > 24 && sw <29){ digitalWrite(D1,HIGH); digitalWrite(D2,HIGH); number(0); delay(1000); number(1); delay(1000); number(2); delay(1000); number(3); delay(1000); number(4); delay(1000); number(5); delay(1000); number(6); delay(1000); number(7); delay(1000); number(8); delay(1000); number(9); delay(1000); }else if(sw > 19 && sw <24){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(0); delay(500); number(1); delay(500); number(2); delay(500); number(3); delay(500); number(4); delay(500); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(5); delay(500); number(6); delay(500); number(7); delay(500); number(8); delay(500); number(9); delay(500); }else if(sw == 13){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delayMicroseconds (500); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(0); delayMicroseconds (500); }else if(sw == 10){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(9); delay(500); number(8); delay(500); number(7); delay(500); number(6); delay(500); number(5); delay(500); number(4); delay(500); number(3); delay(500); number(2); delay(500); number(1); delay(500); number(0); delay(500); }else if(sw == 5){ digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(0); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(1); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(2); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(3); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(4); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(5); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(6); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(7); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(8); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(1); delay(50); digitalWrite(D1,HIGH); digitalWrite(D2,LOW); number(9); delay(50); digitalWrite(D1,LOW); digitalWrite(D2,HIGH); number(2); } }

5. Video Demo [Kembali]

6. Kondisi dan Analisa [Kembali]

Masing-masing switch LED menghasilkan tampilan yang berbeda-beda sesuai logika yang diatur pada listing program.
